Updates to dataRetrieval 2026

Laura DeCicco

Introduction

In this ~90 minute introduction, the goal is:

Introduce new dataRetrieval functions
The intended audience is someone:
- Seasoned dataRetrieval user
- AND/OR intermediate R user
- Familiar with USGS water data

New to dataRetrieval? Introduction to dataRetrieval

Why are we here?

NWIS servers are shutting down
- That means all readNWIS functions will eventually stop working
- Timeline is very uncertain, so we wanted to get information out on replacement functions ASAP.
New dataRetrieval functions are available to replace the NWIS functions
- read_waterdata_ functions are the modern functions
- They use the new USGS Water Data APIs

dataRetrieval is available on the Comprehensive R Archive Network (CRAN) repository. To install dataRetrieval on your computer, open RStudio and run this line of code in the Console:

install.packages("dataRetrieval")

Then each time you open R, you’ll need to load the library:

library(dataRetrieval)

Whether you are a user or developer we recommend installing dataretrieval in a virtual environment. This can be done using something like virtualenv or conda.

pip install dataretrieval

conda install conda-forge::dataretrieval

Then each time you open Python, you’ll need to load the library:

from dataretrieval import waterdata

USGS Water Data OGC APIs: Current Functions

Open Geospatial Consortium (OGC), a non-profit international organization that develops and promotes open standards for geospatial information. OGC-compliant interfaces to USGS water data:

read_waterdata_monitoring_location - Monitoring location information
read_waterdata_ts_meta - Time series availability
read_waterdata_parameter_codes - Parameter code information

USGS Water Data OGC APIs: Current Functions (cont.)

read_waterdata_field_meta - Field measurement data availability
read_waterdata_combined_meta - Combined time series and field data availability
read_waterdata_daily - Daily data
read_waterdata_latest_daily - Latest daily data

USGS Water Data OGC APIs: Current Functions (cont.)

read_waterdata_continuous - Continuous data are collected via automated sensors installed at a monitoring location.
read_waterdata_latest_continuous - Latest continuous data
read_waterdata_field_measurements - Discrete hydrologic data (gage height, discharge, and readings of groundwater levels)

USGS Water Data OGC APIs: Current Functions (cont.)

read_waterdata_channel - Channel measurements
read_waterdata - Generalized function.
read_waterdata_metadata - Metadata
read_waterdata_rating - Rating Curve Data
read_waterdata_peaks - Peak Data

USGS Water Data API Token

The Water Data APIs limit how many queries a single IP address can make per hour
You can run new dataRetrieval functions without a token
You might run into errors quickly. If you (or your IP!) have exceeded the quota, you will see:

! HTTP 429 Too Many Requests.
  • You have exceeded your rate limit. Make sure you provided your API key from https://api.waterdata.usgs.gov/signup/, then either try again later or contact us at https://waterdata.usgs.gov/questions-comments/?referrerUrl=https://api.waterdata.usgs.gov for assistance.

USGS Water Data API Token

Request a USGS Water Data API Token: https://api.waterdata.usgs.gov/signup/
Save it in a safe place (KeyPass or other password management tool)

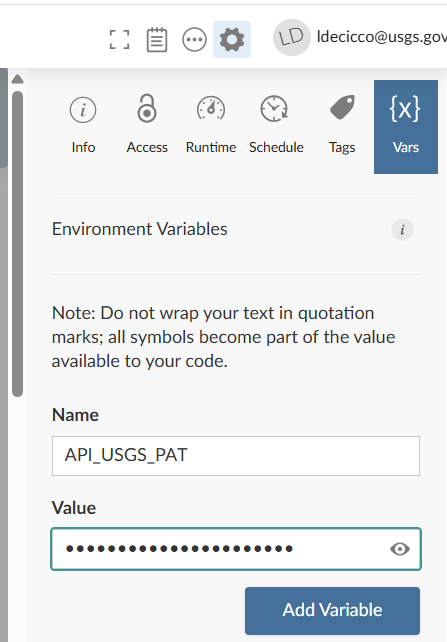

Add it as environment variable
Restart

See next slide for a demonstration.

Water Data API Token: Example

Let’s pretend the token sent you was “abc123”

R
Python

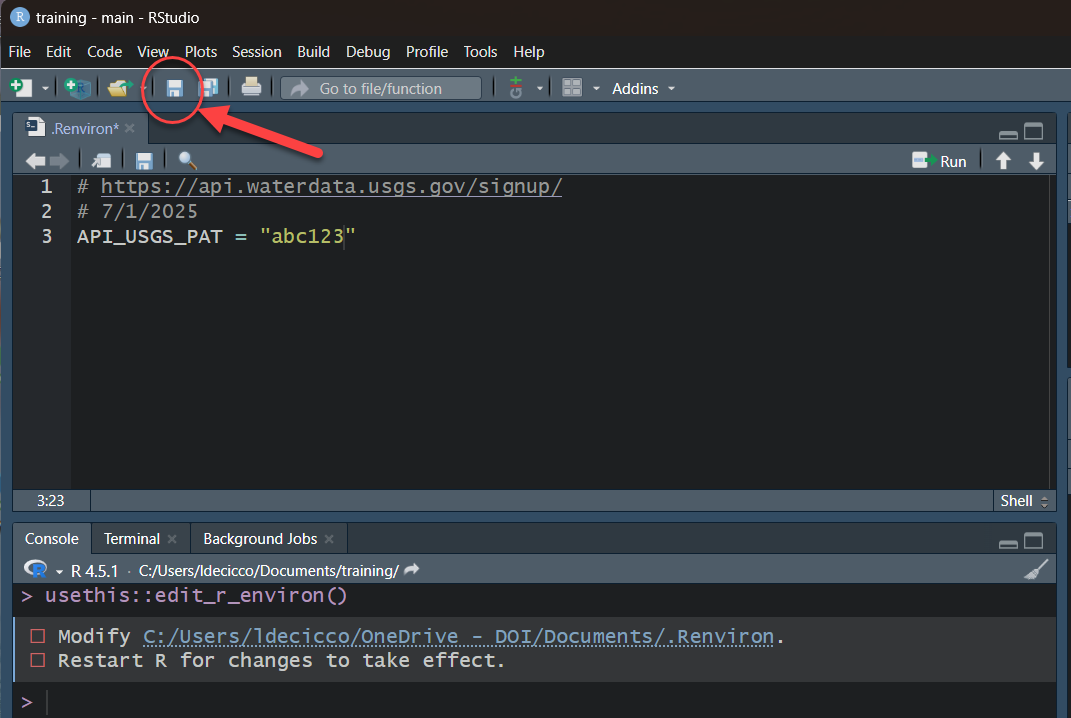

Run in R:

usethis::edit_r_environ()

Add this line to the file that opens up:

API_USGS_PAT = "abc123"

Save that file
Restart R/RStudio.
Check that it worked by running (you should see your token printed in the Console):

Sys.getenv("API_USGS_PAT")

Note

Your .Renviorn file should never be pushed to a public repository.

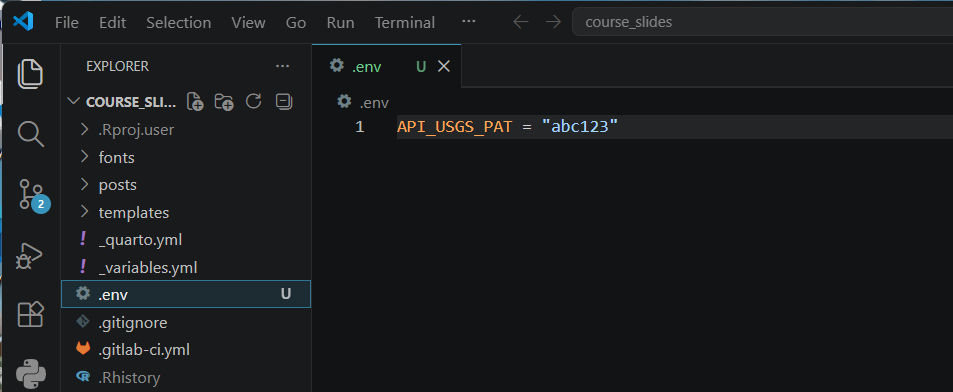

Create a file in your working directory .env
Add this line to the .env file:

API_USGS_PAT = "abc123"

Restart your python session
Check that it worked by running (you should see your token printed in the Console):

import os
os.getenv("API_USGS_PAT")
'abc123'

Note

Make sure to add .env file to .gitignore to make sure you do not accidently push it to a public repository.

Water Data API Token: Example

R
Python

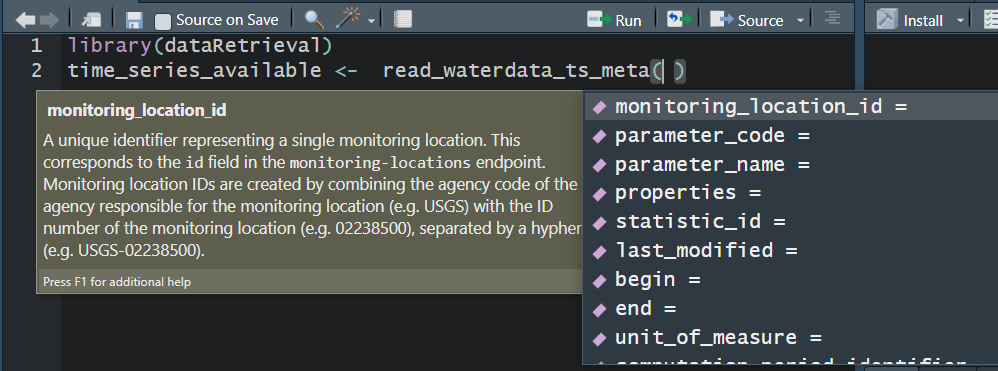

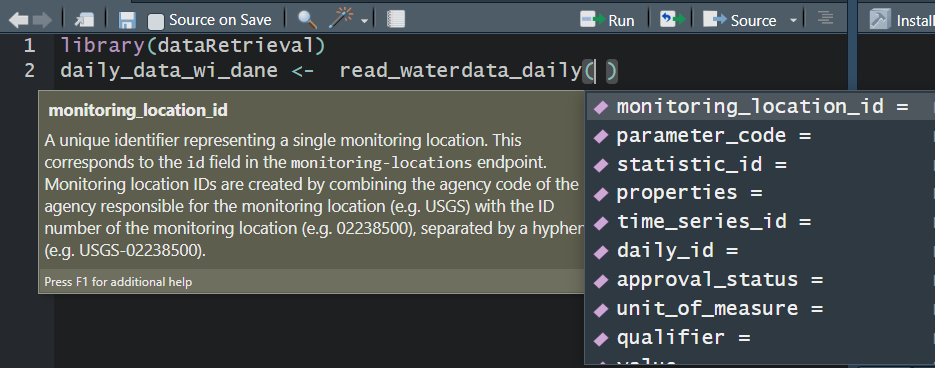

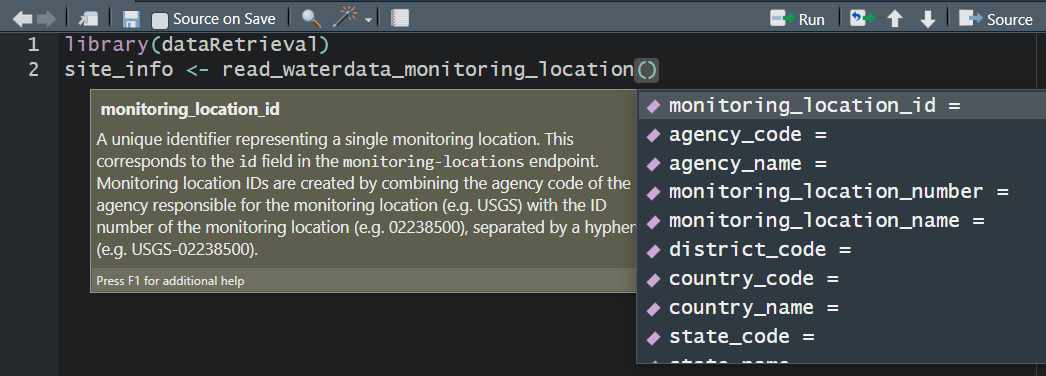

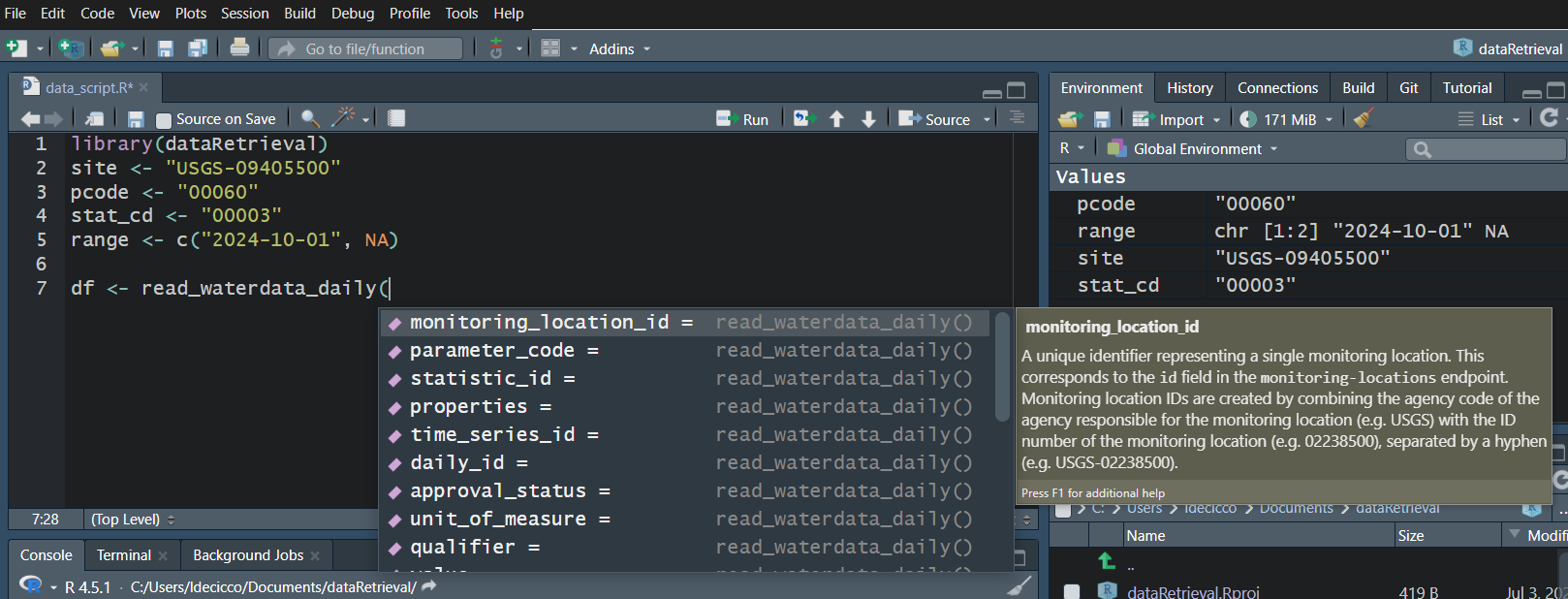

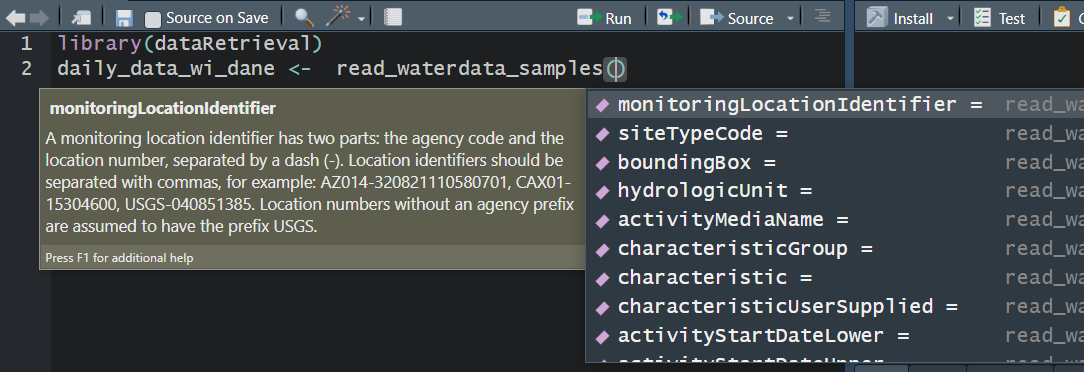

Water Data APIs: Initial Tips

Use your “tab” key!

R
Python

read_waterdata_monitoring_location

Replaces readNWISsite:

All the columns that you retrieve, you can also filter on.
You should not specify all of these parameters.
You should not specify too few of these parameters.

read_waterdata_monitoring_location

Let’s get all the monitoring locations for Dane County, Wisconsin:

R
Python

site_info <- read_waterdata_monitoring_location(
  state_name = "Wisconsin",
  county_name = "Dane County"
)

Requesting:
https://api.waterdata.usgs.gov/ogcapi/v0/collections/monitoring-locations/items?f=json&lang=en-US&state_name=Wisconsin&county_name=Dane%20County&limit=50000

Remaining requests this hour:2192

site_info, md = waterdata.get_monitoring_locations(
    state_name="Wisconsin", county_name="Dane County"
)

Geopandas not installed. Geometries will be flattened into pandas DataFrames.

Note on county names

read_waterdata_monitoring_location requires “County” in the county_name argument. You can check county names using:

counties <- check_waterdata_sample_params(service = "counties")

read_waterdata_monitoring_location

Now that we’ve seen the whole data set, maybe we realize in the future we can ask for just stream sites, and we only really need a few of those columns:

R
Python

site_info_refined <- read_waterdata_monitoring_location(
  state_name = "Wisconsin",
  county_name = "Dane County",
  site_type = "Stream",
  properties = c(
    "monitoring_location_id",
    "monitoring_location_name",
    "drainage_area",
    "geometry"
  )
)

Requesting:
https://api.waterdata.usgs.gov/ogcapi/v0/collections/monitoring-locations/items?f=json&lang=en-US&properties=monitoring_location_name%2Cdrainage_area&state_name=Wisconsin&county_name=Dane%20County&site_type=Stream&limit=50000

Remaining requests this hour:2192

site_info_refined, md = waterdata.get_monitoring_locations(
    state_name="Wisconsin",
    county_name="Dane County",
    site_type="Stream",
    properties=[
        "monitoring_location_id",
        "monitoring_location_name",
        "drainage_area",
        "geometry",
    ],
)

Geopandas not installed. Geometries will be flattened into pandas DataFrames.

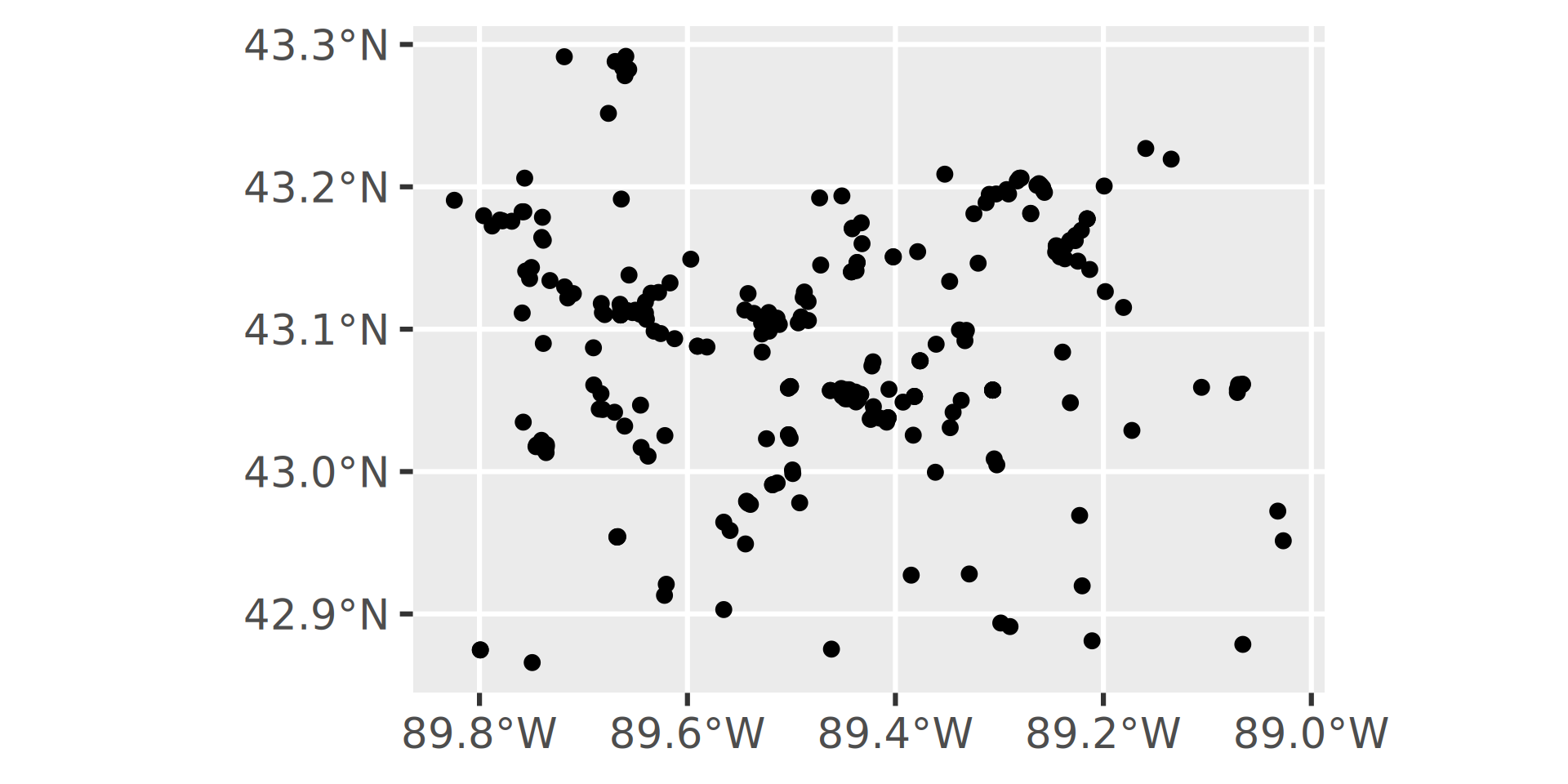

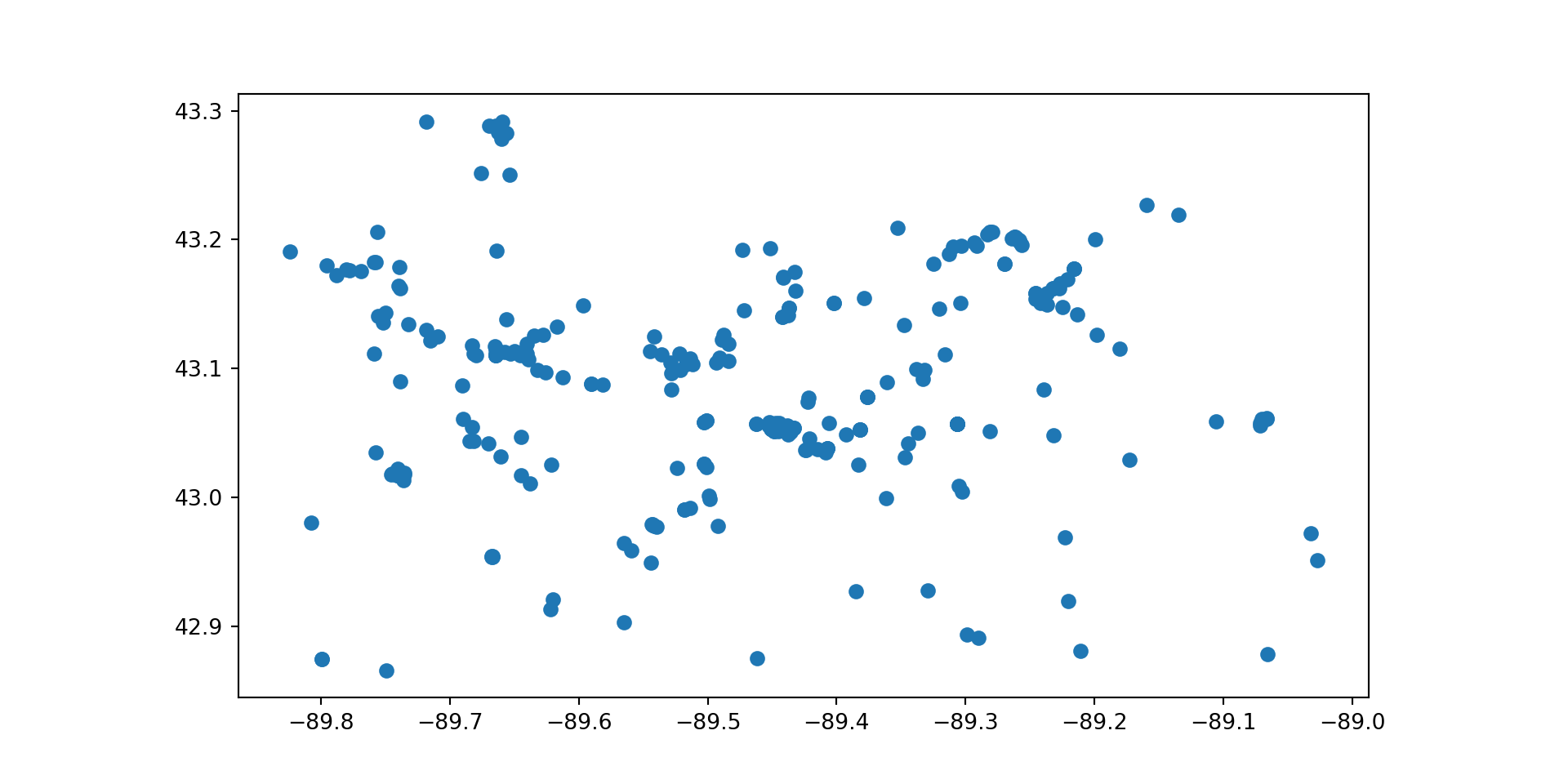

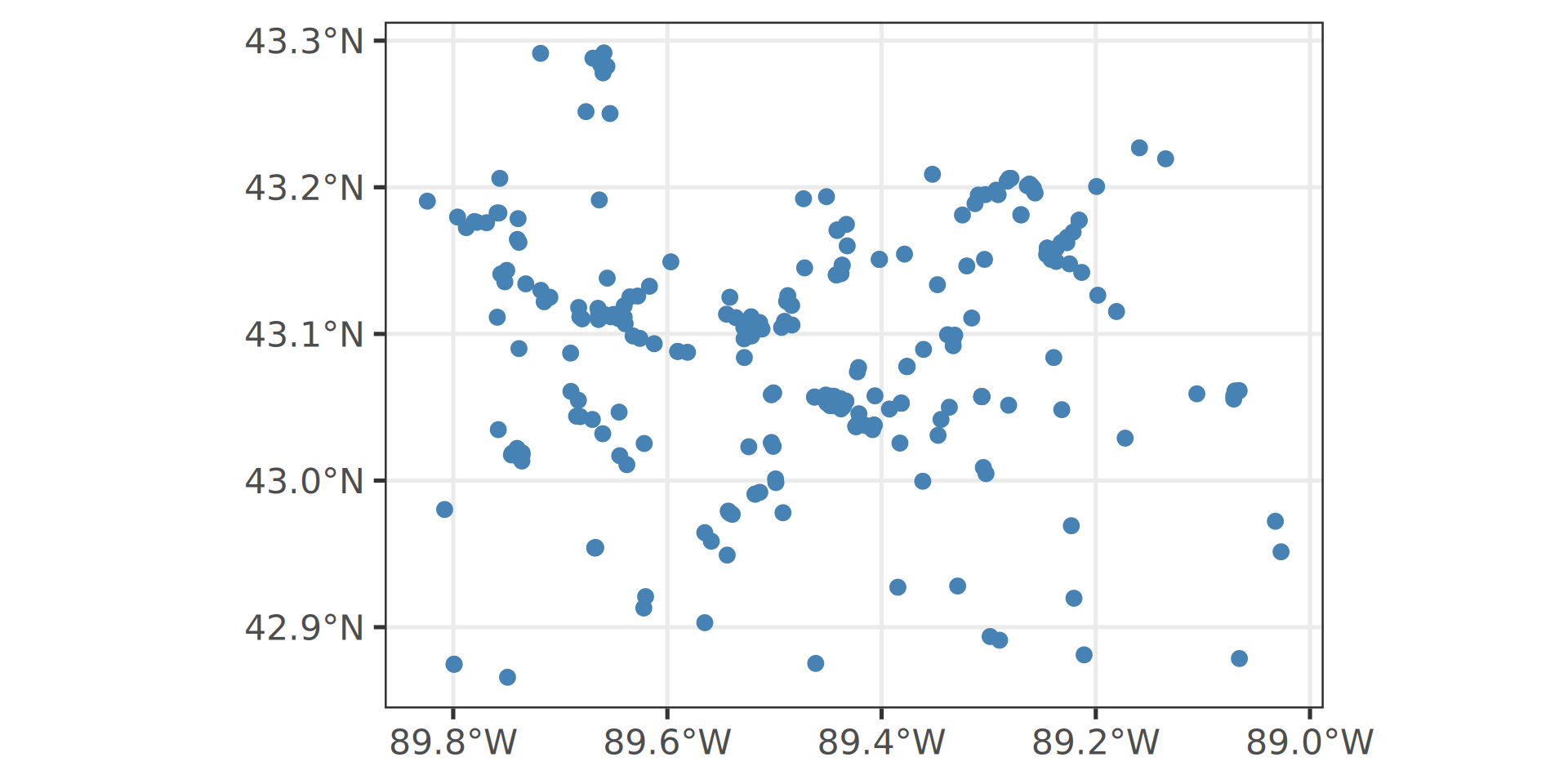

Map It with geometry

R: ggplot2
Python: matplotlib

library(ggplot2)

ggplot(data = site_info_refined) +
  geom_sf()

import matplotlib.pyplot as plt
import geopandas as gpd

site_info_refined.plot()

Map It: leaflet

library(leaflet)
#default leaflet crs:
leaflet_crs <- "+proj=longlat +datum=WGS84"

leaflet(
  data = site_info_refined |>
    sf::st_transform(crs = leaflet_crs)
) |>
  addProviderTiles("CartoDB.Positron") |>
  addCircleMarkers(popup = ~monitoring_location_name, radius = 3, opacity = 1)

Map It: leaflet

Removing `sf`

You can post-process the “geometry” column out, or convert it to lat/lon with the sf package:

no_sf_1 <- site_info_refined |>
  sf::st_drop_geometry()

longitude <- sf::st_coordinates(site_info_refined)[, 1]
latitude <- sf::st_coordinates(site_info_refined)[, 2]

You can declare skipGeometry=TRUE in the query to return a plain data frame with no geometry:

R
Python

no_sf <- read_waterdata_monitoring_location(
  state_name = "Wisconsin",
  county_name = "Dane County",
  site_type = "Stream",
  skipGeometry = TRUE
)

no_sf, md = waterdata.get_monitoring_locations(
    state_name="Wisconsin",
    county_name="Dane County",
    site_type="Stream",
    skip_geometry=True,
)

read_waterdata_combined_meta

Combined Time-Series Metadata. Kind of replaces whatNWISdata:

site_ts <- read_waterdata_combined_meta(
  monitoring_location_id = "USGS-02238500"
)

read_waterdata_combined_meta

Let’s get all the time series in Dane County, WI with daily mean (statistic_id = “00003”) discharge (parameter code = “00060) or temperature (parameter code =”00010):

sites_available <- read_waterdata_combined_meta(
  state_name = "Wisconsin",
  county_name = "Dane County",
  parameter_code = c("00060", "00010"),
  statistic_id = c("00003")
)

Tip

Geographic filters are limited to monitoring_location_id and bbox in “waterdata” functions other than read_waterdata_monitoring_location and read_waterdata_combined_meta.

Using sf::st_bbox() is a convenient way to take advantage of the spatial features integration.

read_waterdata_combined_meta

read_waterdata_daily

Replaces readNWISdv:

daily <- read_waterdata_daily(
  monitoring_location_id = c("USGS-05406457", "USGS-05427930"),
  parameter_code = c("00060", "00010"),
  statistic_id = "00003",
  time = c("2024-10-01", "2025-07-07")
)

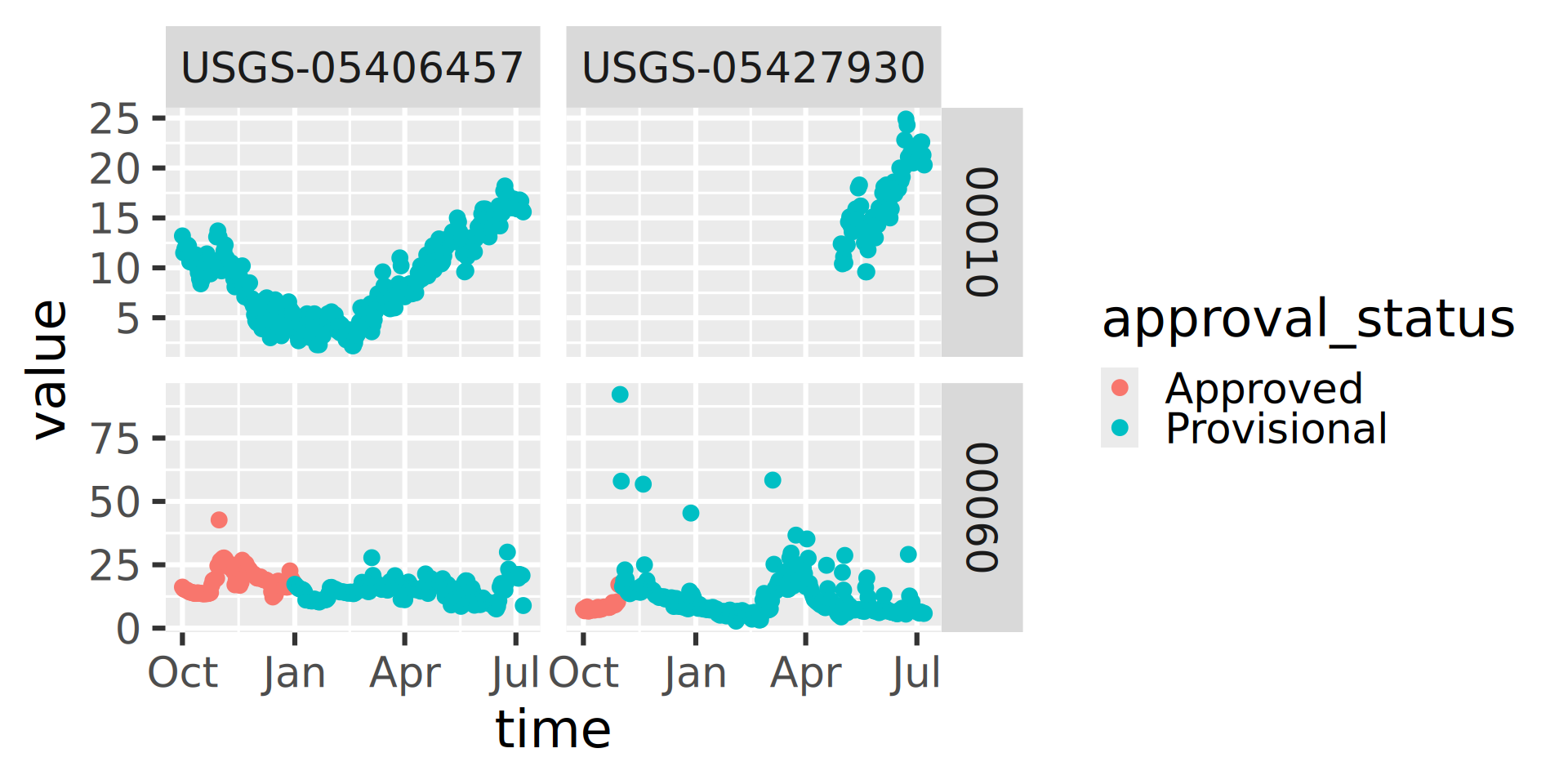

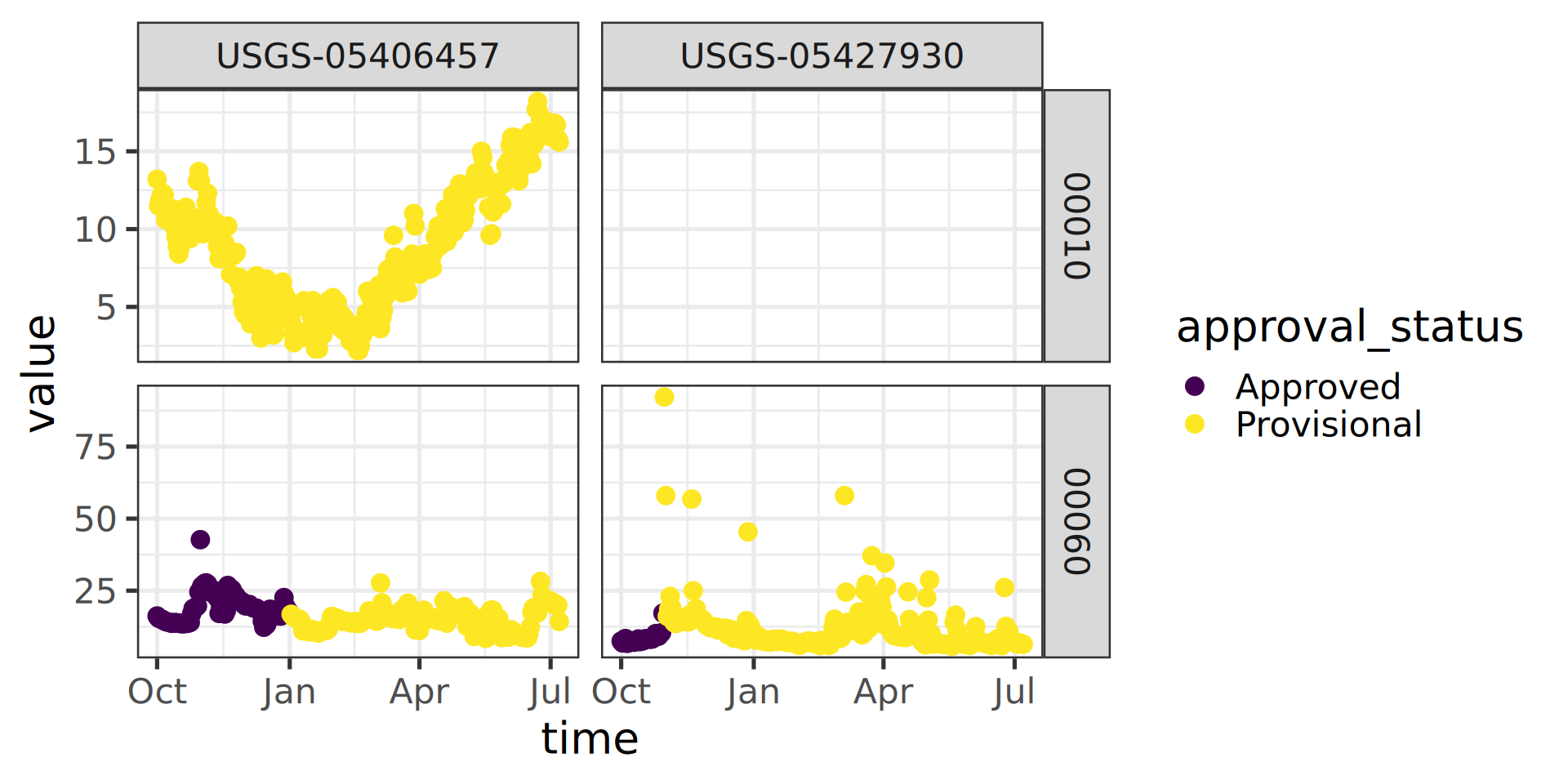

read_waterdata_daily

ggplot(data = daily) +
  geom_point(aes(x = time, y = value, color = approval_status)) +
  facet_grid(parameter_code ~ monitoring_location_id, scale = "free")

USGS Water Data APIs Notes: time input

The “time” argument has a few options:

A single date (or date-time): “2024-10-01” or “2024-10-01T23:20:50Z”
A bounded interval: c(“2024-10-01”, “2025-07-02”)
Half-bounded intervals: c(“2024-10-01”, NA)
Duration objects: “P1M” for data from the past month or “PT36H” for the last 36 hours

Here are a bunch of valid inputs:

# Ask for exact times:
time = "2025-01-01"
time = as.Date("2025-01-01")
time = "2025-01-01T23:20:50Z"
time = as.POSIXct(
  "2025-01-01T23:20:50Z",
  format = "%Y-%m-%dT%H:%M:%S",
  tz = "UTC"
)
# Ask for specific range
time = c("2024-01-01", "2025-01-01") # or Dates or POSIXs
# Asking beginning of record to specific end:
time = c(NA, "2024-01-01") # or Date or POSIX
# Asking specific beginning to end of record:
time = c("2024-01-01", NA) # or Date or POSIX
# Ask for period
time = "P1M" # past month
time = "P7D" # past 7 days
time = "PT12H" # past hours

read_waterdata_latest_continuous

Most recent observation for each time series of continuous data.

Continuous data are collected via automated sensors installed at a monitoring location. They are collected at a high frequency and often at a fixed 15-minute interval.

latest_uv_data <- read_waterdata_latest_continuous(
  monitoring_location_id = "USGS-01491000",
  parameter_code = "00060",
)

latest_dane_county <- read_waterdata_latest_continuous(
  bbox = sf::st_bbox(site_info),
  parameter_code = "00060"
)

single_ts <- read_waterdata_latest_continuous(
  time_series_id = "202345d175874d2c814648ac9bea5deb"
)

read_waterdata_latest_continuous

Latest discharge observation (00060) in Dane County, WI:

Map Latest Discharge Observation: leaflet

pal <- colorNumeric("viridis", latest_dane_county$value)
leaflet_crs <- "+proj=longlat +datum=WGS84"
leaflet(
  data = latest_dane_county |>
    sf::st_transform(crs = leaflet_crs)
) |>
  addProviderTiles("CartoDB.Positron") |>
  addCircleMarkers(
    popup = paste(
      latest_dane_county$monitoring_location_id,
      "<br>",
      latest_dane_county$time,
      "<br>",
      latest_dane_county$value,
      latest_dane_county$unit_of_measure
    ),
    color = ~ pal(value),
    radius = 3,
    opacity = 1
  ) |>
  addLegend(
    pal = pal,
    position = "bottomleft",
    title = "Latest Discharge",
    values = ~value
  )

Map Latest Discharge Observation: leaflet

read_waterdata_latest_daily

Most recent observation for each time series of daily data.

latest_dane_county_daily <- read_waterdata_latest_daily(
  bbox = sf::st_bbox(site_info),
  parameter_code = "00060",
  time = "P14D"
)

Map Latest Daily Discharge: leaflet

pal <- colorNumeric("viridis", latest_dane_county_daily$value)
leaflet_crs <- "+proj=longlat +datum=WGS84"
leaflet(
  data = latest_dane_county_daily |>
    sf::st_transform(crs = leaflet_crs)
) |>
  addProviderTiles("CartoDB.Positron") |>
  addCircleMarkers(
    popup = paste(
      latest_dane_county_daily$monitoring_location_id,
      "<br>",
      latest_dane_county_daily$time,
      "<br>",
      latest_dane_county_daily$value,
      latest_dane_county_daily$unit_of_measure
    ),
    color = ~ pal(value),
    radius = 3,
    opacity = 1
  ) |>
  addLegend(
    pal = pal,
    position = "bottomleft",
    title = "Latest Discharge",
    values = ~value
  )

Map Latest Daily Discharge: leaflet

read_waterdata_continuous

Replaces readNWISuv:

this_week <- read_waterdata_continuous(
  monitoring_location_id = c("USGS-05406457", "USGS-05427930"),
  parameter_code = c("00060", "00010"),
  time = "P7D"
)

Currently only allows 3 years of data to be queried at once.

More information https://water.code-pages.usgs.gov/dataRetrieval/articles/continuous_pr.html

read_waterdata

This function is totally different!
Uses CQL2 Queries: Common Query Language (CQL2)
Great examples here: https://api.waterdata.usgs.gov/docs/ogcapi/complex-queries/

read_waterdata

Wisconsin and Minnesota sites with a drainage area greater than 1000 mi^2:

cql <- '{
  "op": "and",
  "args": [
    {
      "op": "in",
        "args": [
          { "property": "state_name" },
          [ "Wisconsin", "Minnesota" ]
        ]
    },
    {
      "op": ">",
        "args": [
          { "property": "drainage_area" },
          1000
        ]
    }
  ]
}'

sites_mn_wi <- read_waterdata(service = "monitoring-locations", CQL = cql)

read_waterdata: Map It

pal <- colorNumeric("viridis", sites_mn_wi$drainage_area)
leaflet_crs <- "+proj=longlat +datum=WGS84"
leaflet(
  data = sites_mn_wi |>
    sf::st_transform(crs = leaflet_crs)
) |>
  addProviderTiles("CartoDB.Positron") |>
  addCircleMarkers(
    popup = ~monitoring_location_name,
    color = ~ pal(drainage_area),
    radius = 3,
    opacity = 1
  ) |>
  addLegend(
    pal = pal,
    position = "bottomleft",
    title = "Drainage Area",
    values = ~drainage_area
  )

read_waterdata: Map It

read_waterdata_metadata

The function read_waterdata_metadata gives access to the metadata collections from the USGS Water Data API.

R
Python

agency_codes <- read_waterdata_metadata("agency-codes")
altitude_datums <- read_waterdata_metadata("altitude-datums")
aquifer_codes <- read_waterdata_metadata("aquifer-codes")
aquifer_types <- read_waterdata_metadata("aquifer-types")
coordinate_accuracy_codes <- read_waterdata_metadata(
  "coordinate-accuracy-codes"
)
coordinate_datum_codes <- read_waterdata_metadata("coordinate-datum-codes")
coordinate_method_codes <- read_waterdata_metadata("coordinate-method-codes")
huc_codes <- read_waterdata_metadata("hydrologic-unit-codes")
national_aquifer_codes <- read_waterdata_metadata("national-aquifer-codes")
parameter_codes <- read_waterdata_metadata("parameter-codes")
reliability_codes <- read_waterdata_metadata("reliability-codes")
site_types <- read_waterdata_metadata("site-types")
statistic_codes <- read_waterdata_metadata("statistic-codes")
topographic_codes <- read_waterdata_metadata("topographic-codes")
time_zone_codes <- read_waterdata_metadata("time-zone-codes")

agency_codes, md1 = waterdata.get_reference_table("agency-codes")
altitude_datums, md2 = waterdata.get_reference_table("altitude-datums")
aquifer_codes, md3 = waterdata.get_reference_table("aquifer-codes")
aquifer_types, md4 = waterdata.get_reference_table("aquifer-types")
coordinate_accuracy_codes, md1 = waterdata.get_reference_table(
    "coordinate-accuracy-codes"
)
coordinate_datum_codes, md1 = waterdata.get_reference_table("coordinate-datum-codes")
coordinate_method_codes, md1 = waterdata.get_reference_table("coordinate-method-codes")
huc_codes, md1 = waterdata.get_reference_table("hydrologic-unit-codes")
national_aquifer_codes, md1 = waterdata.get_reference_table("national-aquifer-codes")
parameter_codes, md1 = waterdata.get_reference_table("parameter-codes")
reliability_codes, md1 = waterdata.get_reference_table("reliability-codes")
site_types, md1 = waterdata.get_reference_tablea("site-types")
statistic_codes, md1 = waterdata.get_reference_table("statistic-codes")
topographic_codes, md1 = waterdata.get_reference_table("topographic-codes")
time_zone_codes, md1 = waterdata.get_reference_table("time-zone-codes")

General New Features of Water Data OGC APIs

Flexible Queries
- Lots of options to define your query
- Do NOT define all of them
- Do NOT define to few of them
Flexible Columns Returned
- Use the properties argument to ask for just the columns you want
Simple Features
- Returns a geometry column that allows seamless integration with sf
CQL query support

Lessons Learned

Query limits
- There is a character limit to how big your query can be
- dataRetrieval v2.7.25 will automatically chunk up requests of long lists of monitoring_location_id.

Adding API token to CI jobs: GitLab

If you run dataRetrieval calls in a CI job, you’ll need to add an API Token to the configuration.

Go to: Settings -> CI/CD -> Variables -> Add Variable
Key should be API_USGS_PAT, value will be the token
Click on Masked and hidden
Add to your .gitlab-ci.yml file:

variables:
  API_USGS_PAT: "${API_USGS_PAT}"

Adding API token to CI jobs: GitHub

In GitHub:

Settings -> Secrets and variables -> Actions -> Secrets
Secret can be stored in Environment or Repository
If you created an Environment called “CI_config”, your CI yaml will need:

    environment: CI_config
    env:
      API_USGS_PAT: ${{ secrets.API_USGS_PAT }}

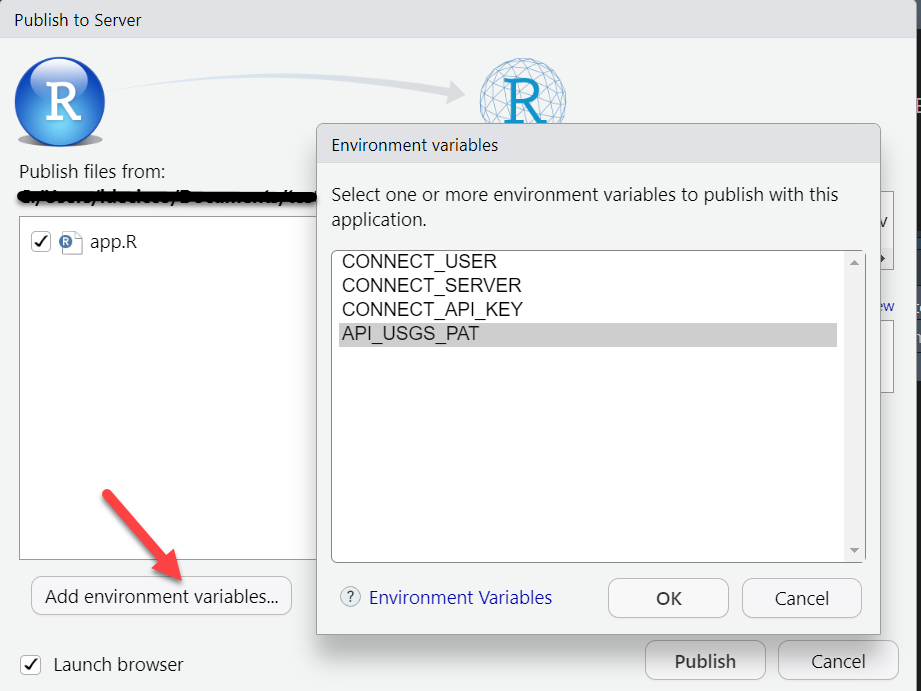

Adding API token: Posit Connect

You’ll want to add a token for any Posit Connect product (Shiny app, Quarto slides, etc.).

Discrete Data

USGS switched to Aquarius Samples March 11, 2024.
On that day, the USGS data in the Water Quality Portal was frozen.
“modern USGS discrete data” = data that includes pre and post Aquarius Samples conversion.
The new function read_waterdata_samples gets modern USGS discrete data.
- it is outside the Water Data OGC API ecosystem, so looks and feels a bit different.
Water Quality Portal (WQP) also has modern USGS discrete data, but not by default.
If you only need USGS data, use read_waterdata_samples, if you need USGS and non-USGS, use readWQPdata.

read_waterdata_samples

Replaces readNWISqw

USGS Samples Data Notes: Data Types and Profiles

There are 2 arguments that dictate what kind of data is returned
- “dataType” defines what kind of data comes back
- “dataProfile” defines what columns from that type come back

Data Types and Profiles

read_waterdata_samples

R
Python

site <- "USGS-01631000"
pcode <- "00660"

qw_data <- read_waterdata_samples(
  monitoringLocationIdentifier = site,
  usgsPCode = pcode,
  dataType = "results",
  dataProfile = "basicphyschem"
)
ncol(qw_data)

[1] 104

site = "USGS-01631000"
pcode = "00660"

qw_data, md = waterdata.get_samples(
    monitoringLocationIdentifier=site,
    usgsPCode=pcode,
    service="results",
    profile="basicphyschem",
)
qw_data.shape[1]

That’s a LOT of columns that come back.

Discrete data censoring

Let’s pull just a few columns out and look at those:

R
Python

library(dplyr)

qw_data_slim <- qw_data |>
  select(
    Date = Activity_StartDate,
    Result_Measure,
    DL_cond = Result_ResultDetectionCondition,
    DL_val = DetectionLimit_MeasureA,
    DL_type = DetectionLimit_TypeA
  ) |>
  mutate(
    nwis_value = if_else(DL_cond != "", DL_val, Result_Measure),
    Detected = if_else(DL_cond != "", "Not Detected", "Detected")
  ) |>
  arrange(Detected)

What is |>? It’s a pipe! It says take ‘this thing’ and put it in ‘that thing’. You’ll also see %>% in code, it is also a pipe - they are basically the same.

import numpy as np

qw_data_slim = (
    qw_data.rename(
        columns={
            "Activity_StartDate": "Date",
            "Result_ResultDetectionCondition": "DL_cond",
            "DetectionLimit_MeasureA": "DL_val",
            "DetectionLimit_TypeA": "DL_type",
        }
    )[["Date", "Result_Measure", "DL_cond", "DL_val", "DL_type"]]
    .assign(
        nwis_value=lambda x: np.where(
            x["DL_cond"].notna(), x["DL_val"], x["Result_Measure"]
        )
    )
    .assign(
        Detected=lambda x: np.where(x["DL_cond"].notna(), "Not Detected", "Detected")
    )
    .sort_values(by="Detected", ascending=False)
)

Discrete data censoring information

summarize_waterdata_samples

A summary service exists for 1 site at a time (so in this case, monitoringLocationIdentifier cannot be a vector of sites):

data_at_site <- summarize_waterdata_samples(
  monitoringLocationIdentifier = "USGS-04183500"
)

Water Quality Portal

If you use readWQPqw, add “legacy=FALSE” to get modern USGS data:

pHsites_legacy <- readWQPqw("USGS-05406450", "pH", legacy = FALSE)

If you use readWQPdata, add ‘service = “ResultWQX3”’:

pHData_wqx3 <- readWQPdata(
  siteid = "USGS-04024315",
  characteristicName = "pH",
  service = "ResultWQX3",
  dataProfile = "basicPhysChem"
)

HELP!

There’s a lot of new information and changes being presented. There are going to be scripts that have been passed down through the years that will start breaking once the NWIS servers are decommissioned.
Check back on the documentation often: https://doi-usgs.github.io/dataRetrieval/
Peruse the “Additional Articles” - when we find common issues people have with converting their old workflows, we will try to add articles to clarify new workflows.
If you have additional questions, email comptools@usgs.gov.

Additional New Features:

More Information

dataRetrieval repository:
- https://github.com/DOI-USGS/dataRetrieval
Documentation:
- https://doi-usgs.github.io/dataRetrieval
Contact:
- Computational Tools Email: comptools@usgs.gov
Bug reports can be reported here:
- https://github.com/DOI-USGS/dataRetrieval/issues

Updates to dataRetrieval 2026

Introduction

Why are we here?

Installation

USGS Water Data OGC APIs: Current Functions

USGS Water Data OGC APIs: Current Functions (cont.)

USGS Water Data OGC APIs: Current Functions (cont.)

USGS Water Data OGC APIs: Current Functions (cont.)

USGS Water Data API Token

USGS Water Data API Token

Water Data API Token: Example

Water Data API Token: Example

Water Data APIs: Initial Tips

read_waterdata_monitoring_location

read_waterdata_monitoring_location

read_waterdata_monitoring_location

read_waterdata_monitoring_location

Map It with geometry

Map It: leaflet

Map It: leaflet

Removing sf

read_waterdata_combined_meta

read_waterdata_combined_meta

read_waterdata_combined_meta

read_waterdata_combined_meta

read_waterdata_daily

read_waterdata_daily

read_waterdata_daily

USGS Water Data APIs Notes: time input

read_waterdata_latest_continuous

read_waterdata_latest_continuous

Map Latest Discharge Observation: leaflet

Map Latest Discharge Observation: leaflet

read_waterdata_latest_daily

Map Latest Daily Discharge: leaflet

Map Latest Daily Discharge: leaflet

read_waterdata_continuous

read_waterdata

read_waterdata

read_waterdata: Map It

read_waterdata: Map It

read_waterdata_metadata

General New Features of Water Data OGC APIs

Lessons Learned

Adding API token to CI jobs: GitLab

Adding API token to CI jobs: GitHub

Adding API token: Posit Connect

Discrete Data

read_waterdata_samples

USGS Samples Data Notes: Data Types and Profiles

Data Types and Profiles

read_waterdata_samples

Discrete data censoring

Discrete data censoring information

summarize_waterdata_samples

Water Quality Portal

HELP!

Additional New Features:

More Information

Removing `sf`
